Setup

STEP - 1

Open the Device Manager on Windows:

Right-click on the Windows logo and select Device Manager

STEP - 2

Locate the USB cable that comes with the cutter and connect one end to the computer and the other end to the cutter.

STEP - 3

Switch on the cutter. Device Manager will flash and install the drivers (Windows 10 or later) and you should see your cutter under Ports (COM & LPT). If you can't see your cutter or you get an error, please take a look at the specific cutter setup under the Cutters section on the main page. Seiki and Ukcutter Pro will not show up under the Ports, they would be listed in Universal Serial Bus controllers. Remember the number in the brackets (COM) as you will need it in the software setup.



STEP - 4

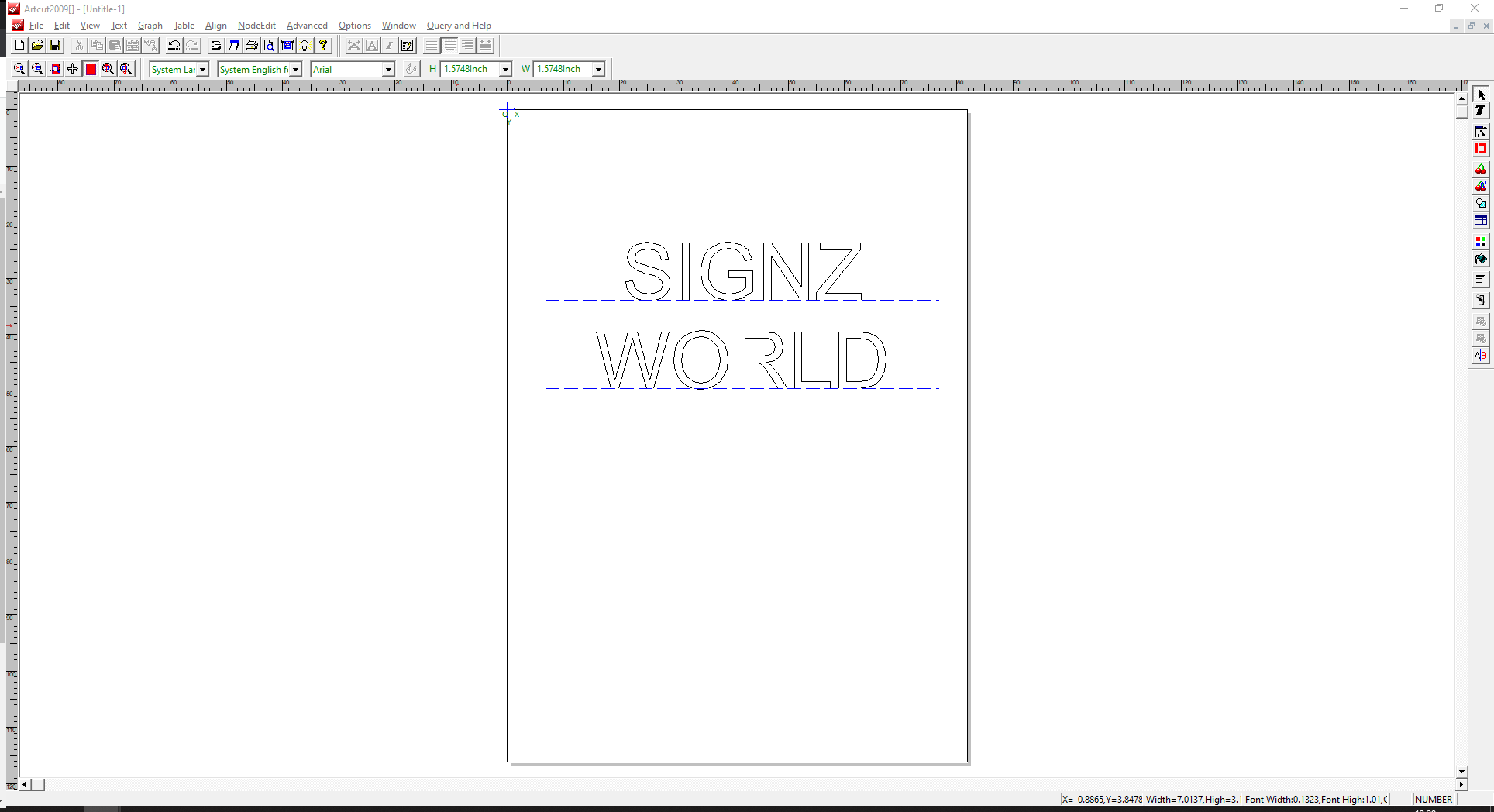

Open Artcut and type in your design

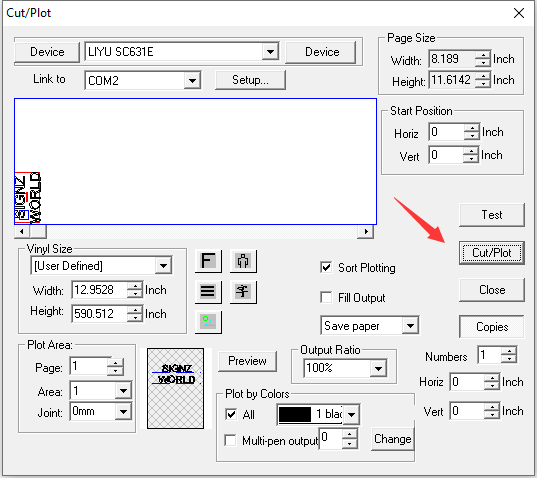

Go to File - Cut/Plot. Press on Device to add a cutter make and model

In the Device Setup window select Add

Select your cutter manufacturer and device model.

Select the correct COM number under the Link to drop down, usually, it would be the top one.

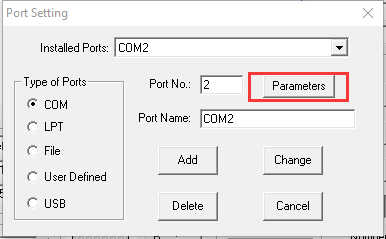

Press on Setup then Parameters

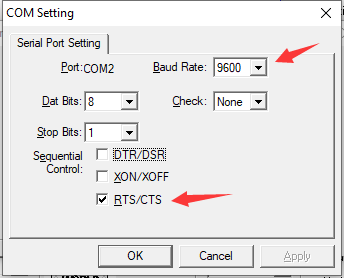

Select RTS/CTS and correct baud rate

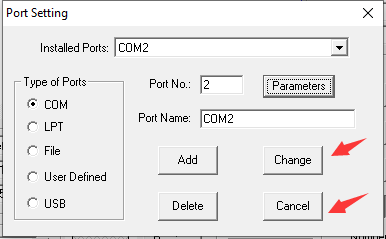

Press OK then Change and Cancel

Press Cut/Plot

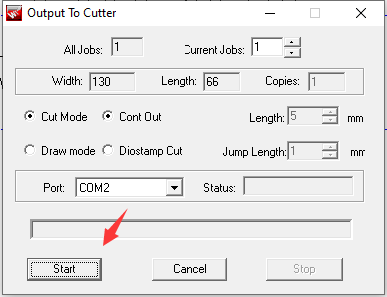

And finally, press Start to send the job over to the cutter

Done!
