Setup

STEP - 1

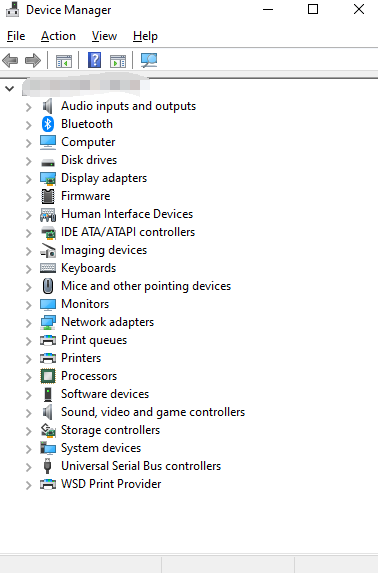

Open the Device Manager on Windows:

Right-click on the Windows logo and select Device Manager

STEP - 2

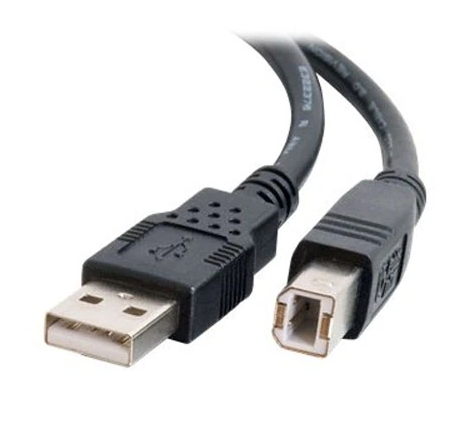

Locate the USB cable that comes with the cutter and connect one end to the computer and the other end to the cutter.

STEP - 3

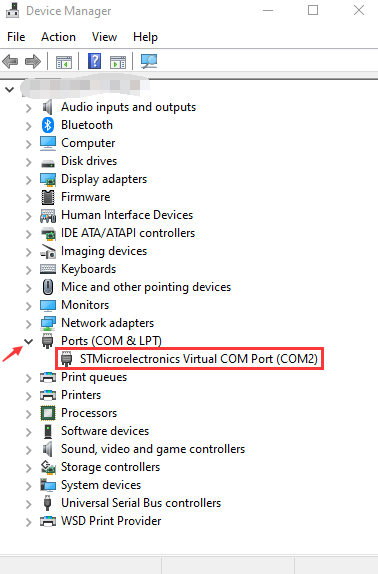

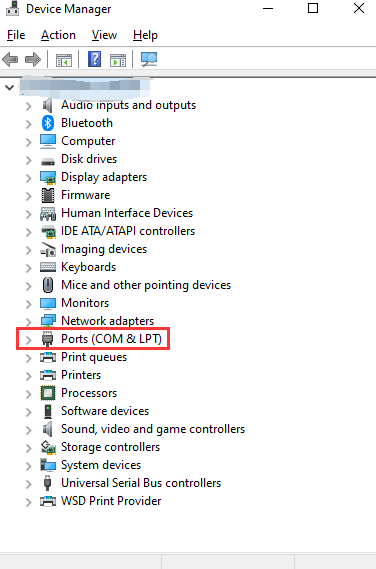

Switch on the cutter. Device Manager will flash and install the drivers (Windows 10 or later) and you should see your cutter under Ports (COM & LPT). If you can not see your cutter or you get an error, refer to the specific cutter setup under the Cutters section on the main page. Seiki and Ukcutter Pro will not show up under the Ports, they would be listed in Universal Serial Bus controllers. Remember the number in the brackets (COM) as you will need it in the software setup.



STEP - 4

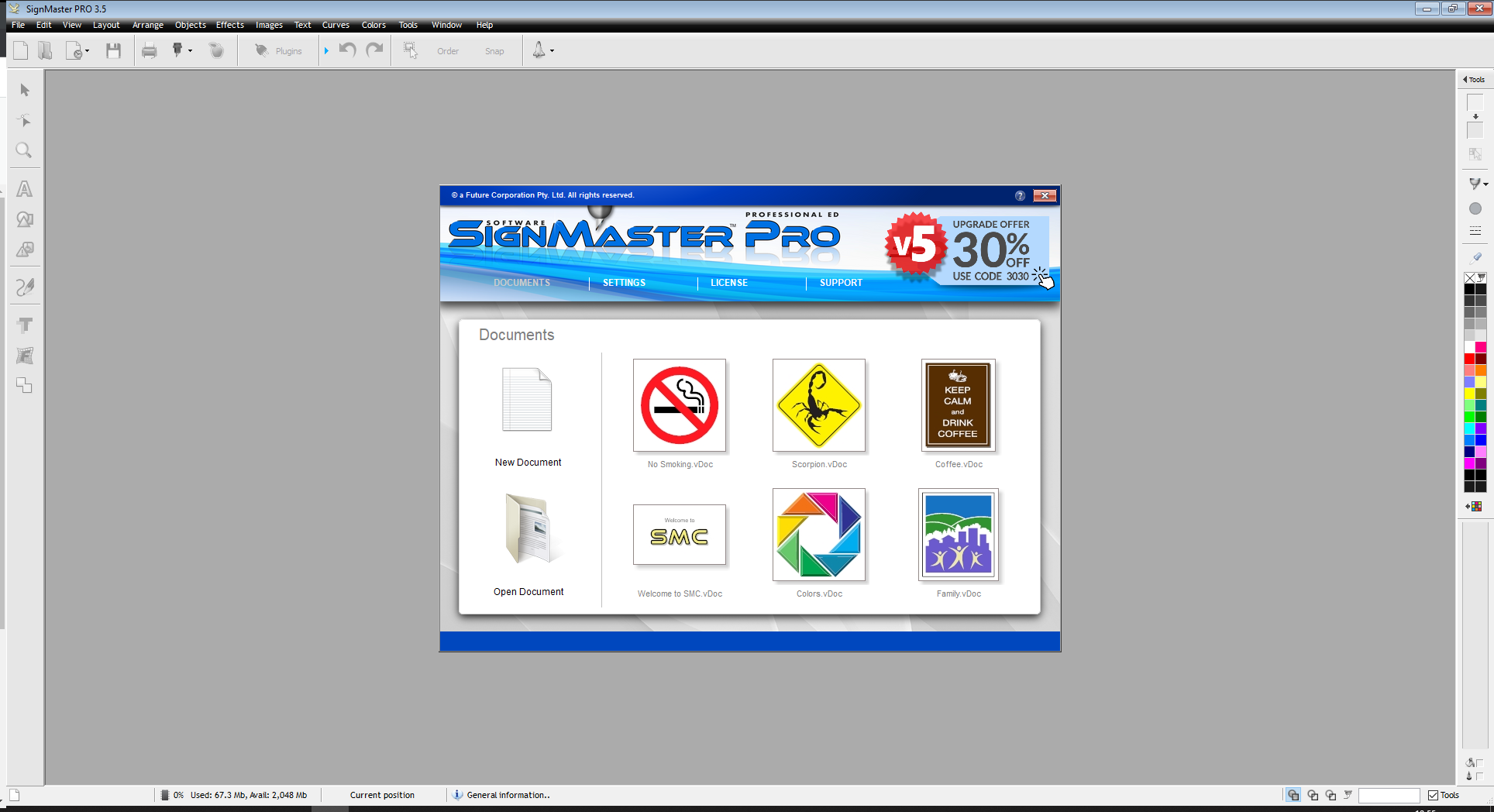

Open the Signmaster

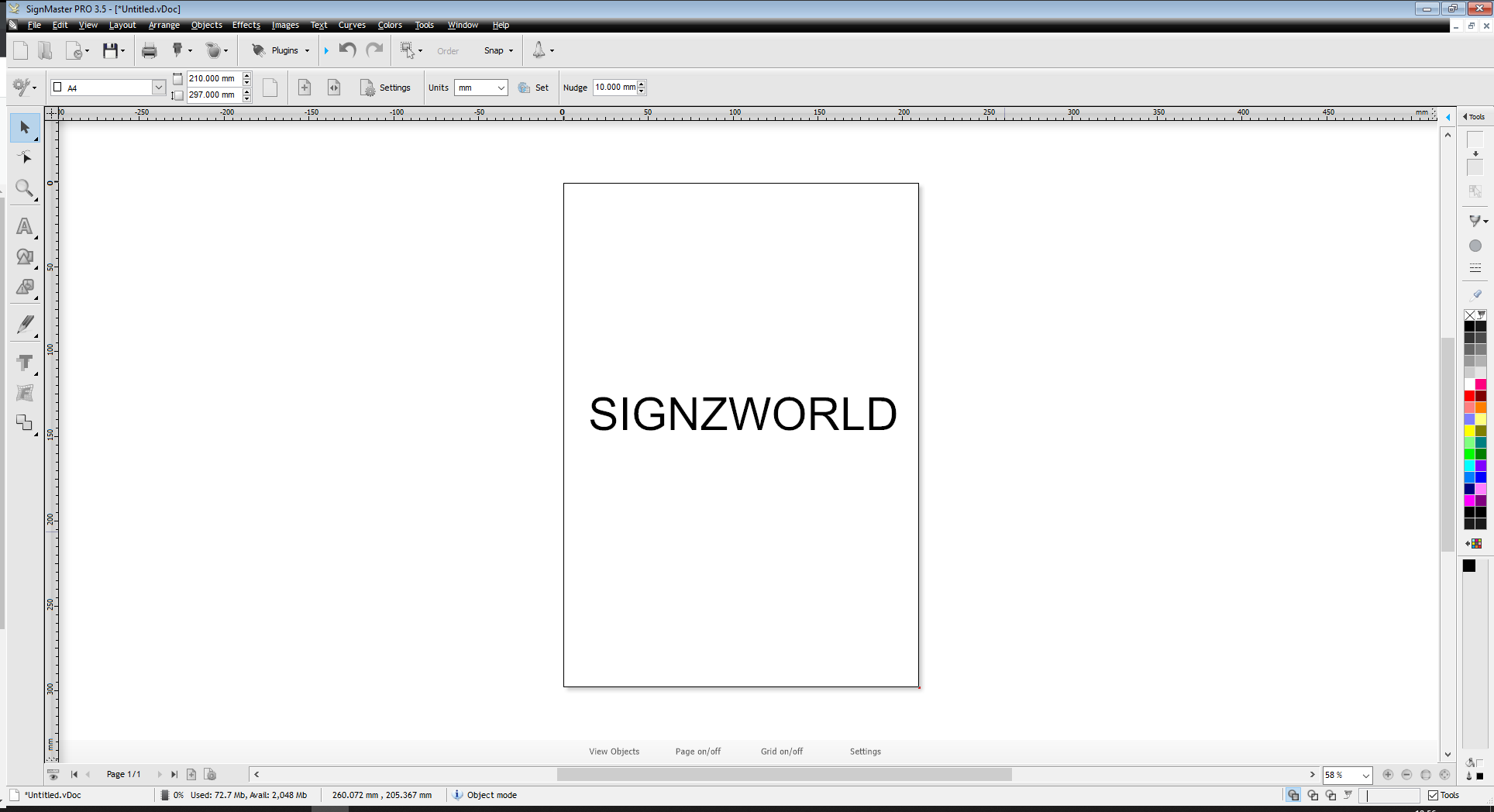

Create or open your design

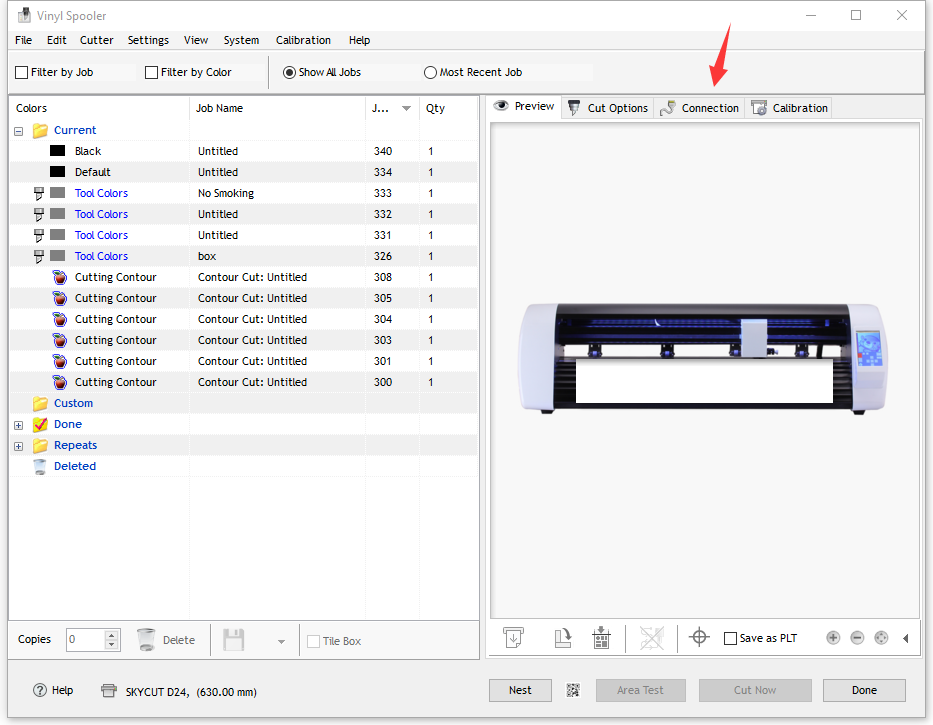

Go to File - Cut/Plot - Vinyl Spooler

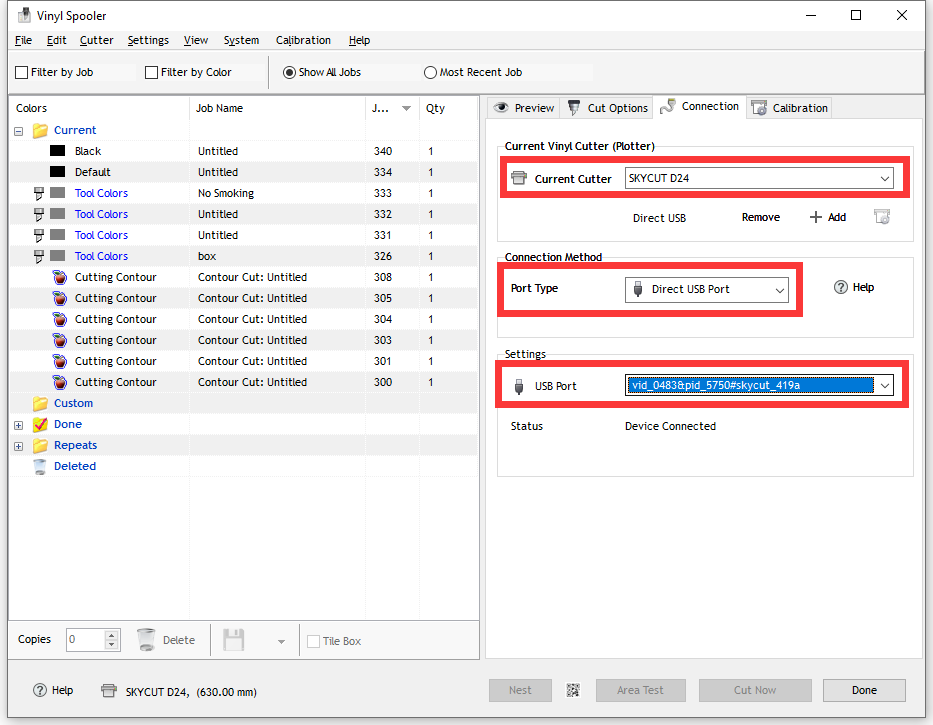

In the Connection tab press on +Add to add your cutter

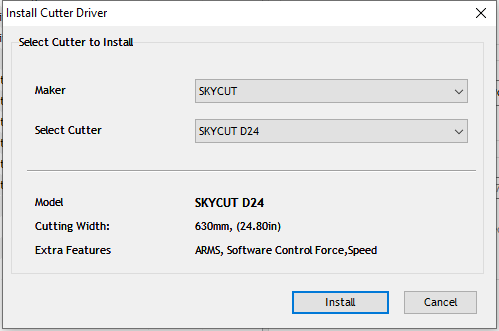

Press Install then select your cutter model, port type and connection. After this press Done and you are ready to send your job over to the cutter

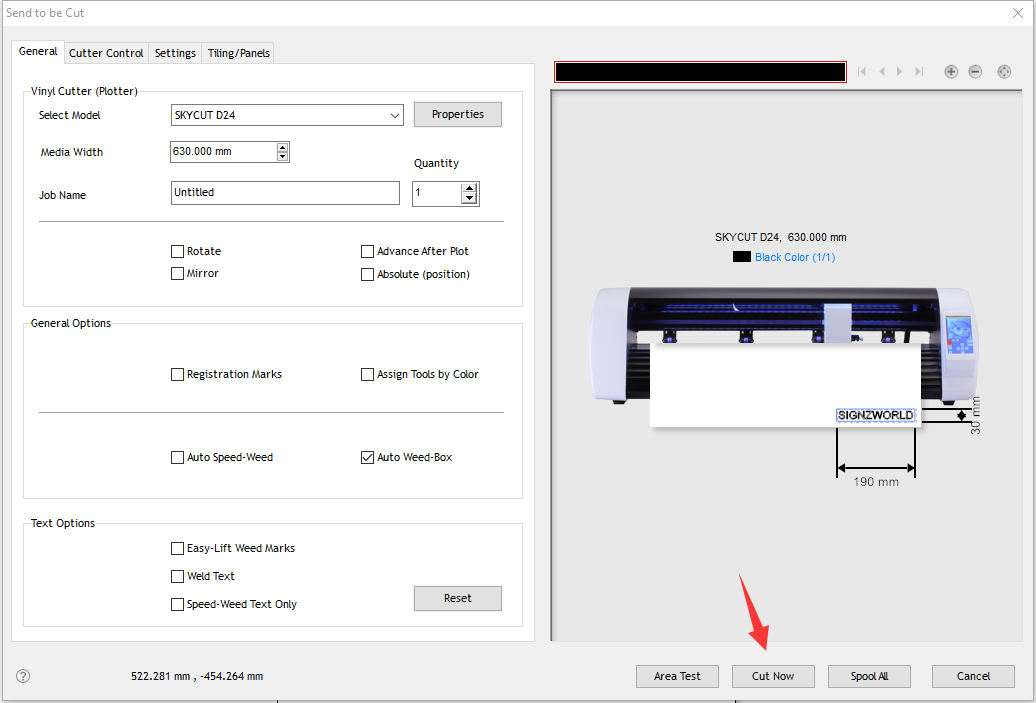

File - Cut/Plot - Send to the cutter

Done!
