Setup

STEP - 1

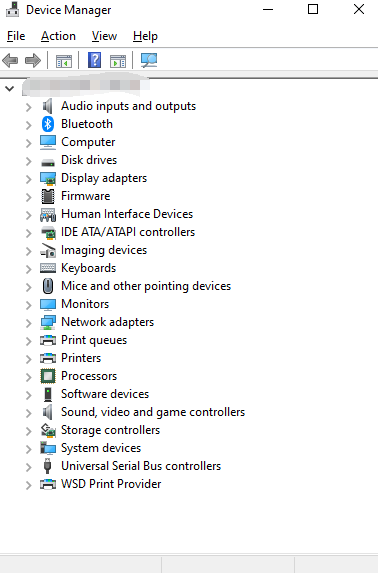

Open the Device Manager on Windows:

Right-click on the Windows logo and select Device Manager

STEP - 2

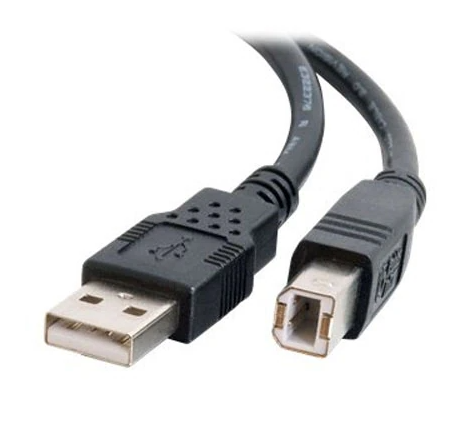

Locate the USB cable that comes with the cutter and connect one end to the computer and the other end to the cutter.

STEP - 3

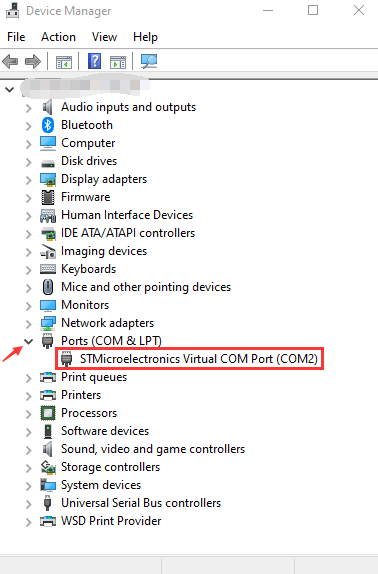

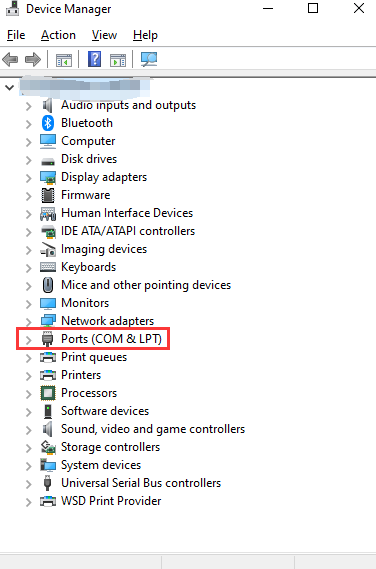

Switch on the cutter. Device Manager will flash and install the drivers (Windows 10 or later) and you should see your cutter under Ports (COM & LPT). If you can not see your cutter or you get an error, refer to the specific cutter setup under the Cutters section on the main page. Seiki and Ukcutter Pro will not show up under the Ports, they would be listed in Universal Serial Bus controllers. Remember the number in the brackets (COM) as you will need it in the software setup.



STEP -  4

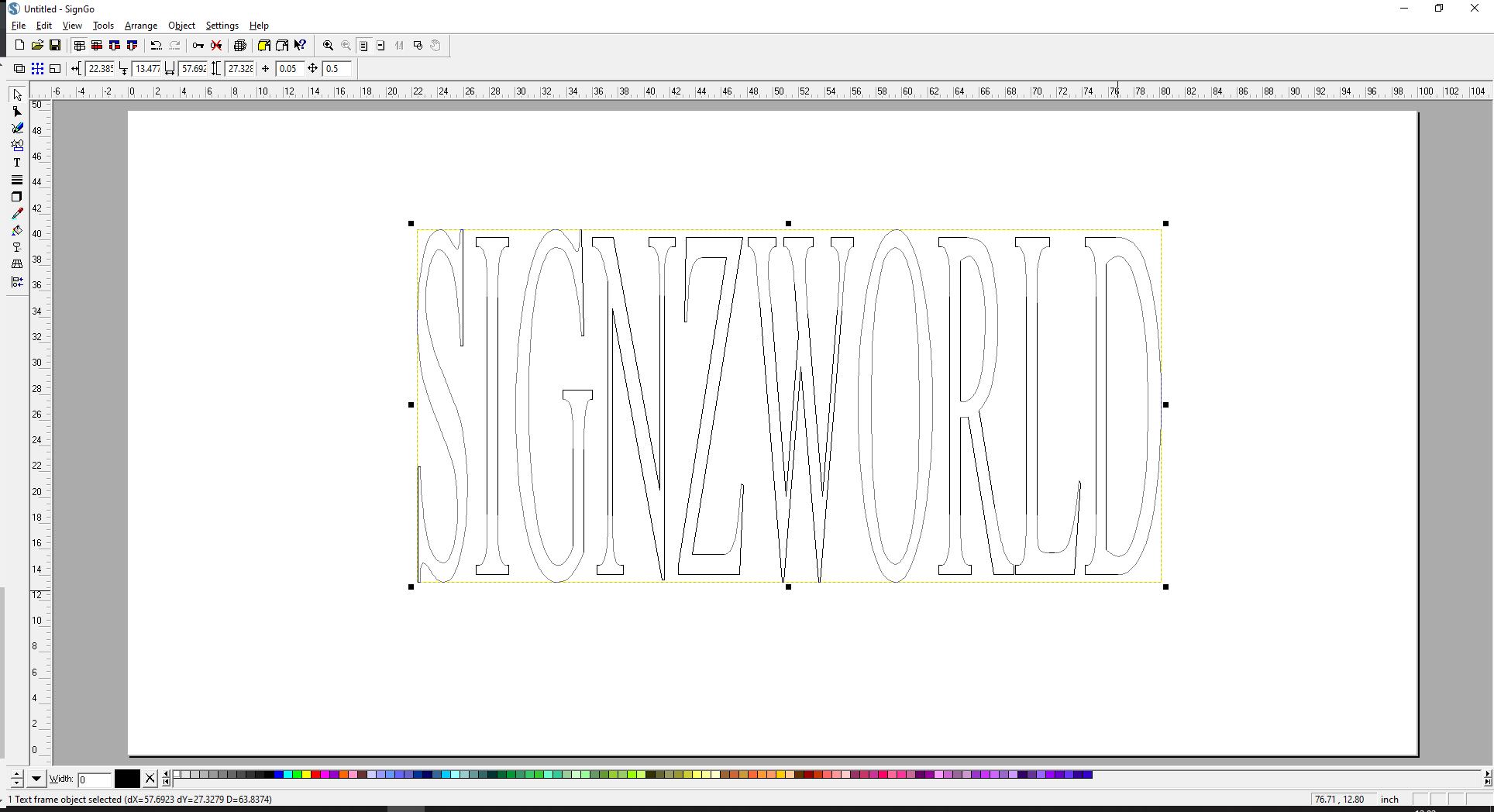

Open SignGO and create your design

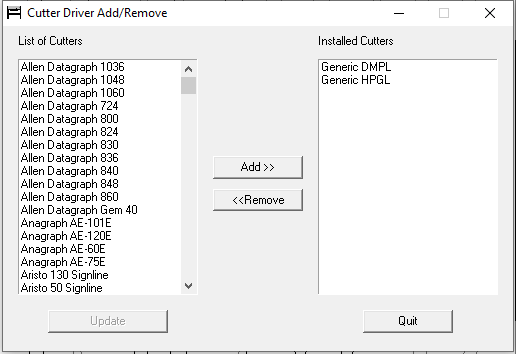

Go To File - Add and remove cutters. Select your cutter from the left column and select Add and Quit

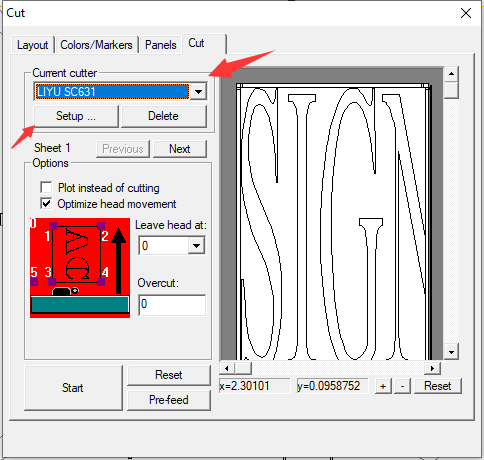

Go to File Cut. Press on the Cut tab and select your cutter from the drop-down then select Setup

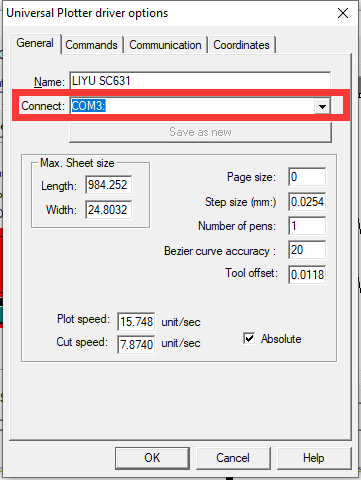

Select correct Connection as per Step - 4

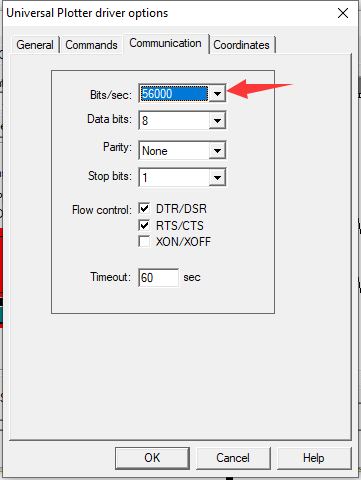

Click on the communication tab and change the bits/sec (baud rate) if required (Liyu - 56700, Refine - 9600)

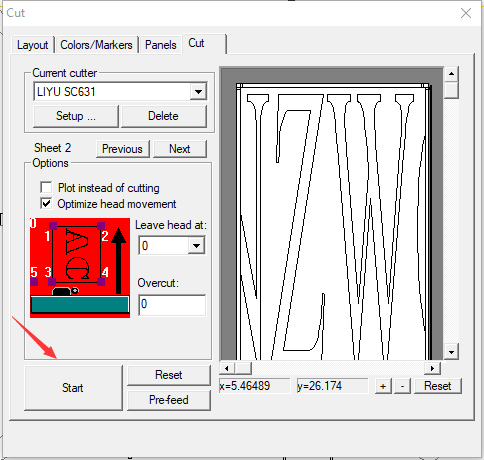

Press Ok and Start when you are ready to send your job to the cutter

Done!
